160LM/W Solar Powered LED Street Light MPPT Controller LiFePO4 Battery

Product Categories
Shaanxi Yahua Lighting Electric Equipment Co., Ltd.
Contact Now

160LM/W Solar Powered LED Street Light MPPT Controller LiFePO4 Battery

  • 1
  • 2
  • 3

Brand Name : Yahua Solar Street lighting

Place of Origin : Guangdong China

Certification : EMC, RoHS, CE, FCC, LVD

Packaging Details : Anti-collision and shatterproof packaging

Delivery Time : 5-8 days

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500 pcs/month

Material : Aluminum Alloy

IP Rating : IP65 Waterproof

CRI : Ra>80

Color Temperature : 3000K-6500K

Panel : Mono Solar Panel

Working Temperature : -40℃-60℃

Lighting Mode : Remote Control+Light Control+Radar Sensor

Contact Now

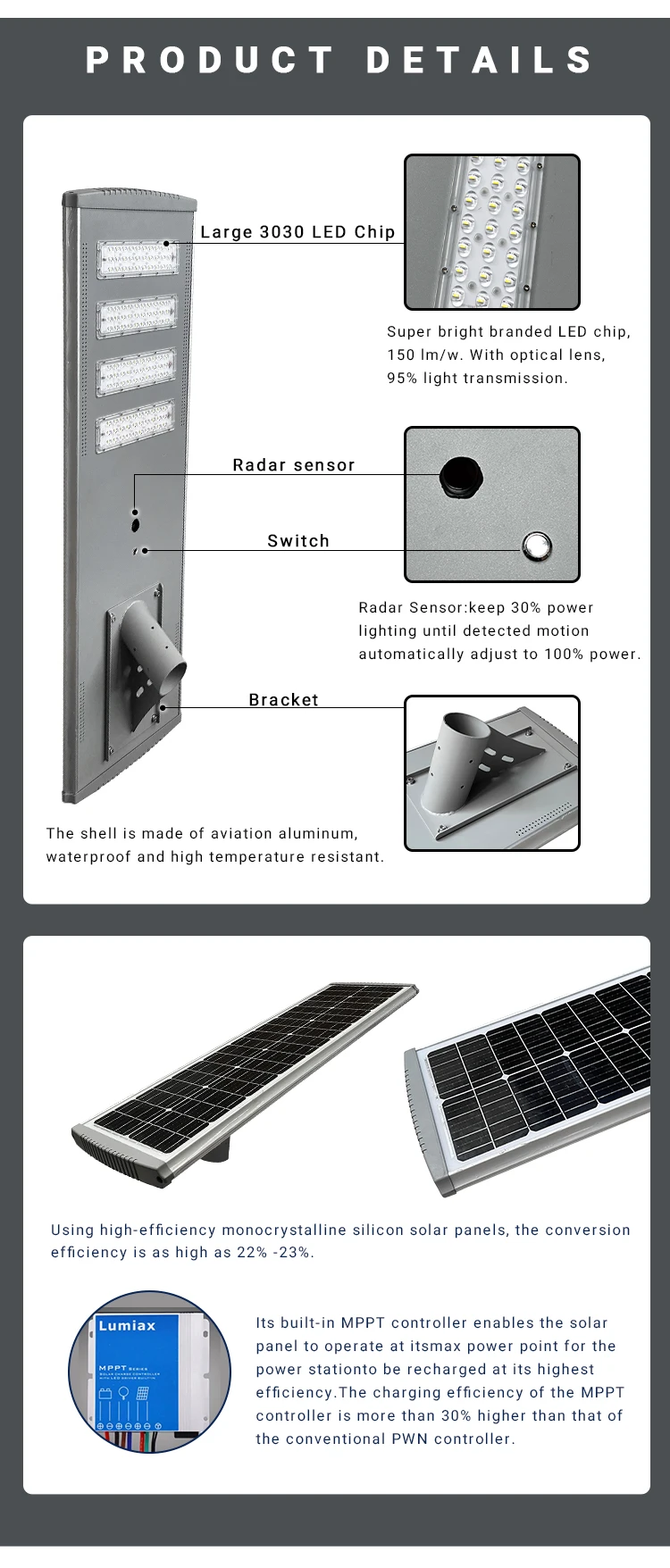

1. Integrated design with high-capacity LiFePO4 lithium battery, providing high energy and long life. The lights are lightweight, environmentally friendly, and do not produce harmful substances.

2. Utilizes imported LED chips with high light efficiency, achieving up to 180LM/W. The overall light efficiency of the lamp can reach at least 160LM/W.
3. All series are equipped with MPPT/PWM controllers, increasing charge efficiency by 15%-30%.
4. Designed with high-efficiency solar cells (>22%) to maximize energy conversion.
5. Offers convenient installation and maintenance, eliminating the need for cable installation or special light poles. The modular design of functional components allows for quick and easy replacement during maintenance.

Product Parameters
Power
100W
200W
300W
Solar panel
Monocrystalline silicon
6V 60W
Monocrystalline silicon
6V 80W
Monocrystalline silicon
6V 100W
Solar panel size
860*355mm
1080*355mm
1380*355mm
Lamp size
920*400*54mm
1140*400*54mm
1440*400*54mm
LED
smd3030 60pcs
smd3030 90pcs
smd3030 120pcs
Battery
3.2V 60000MAH
3.2V 80000MAH
3.2V 140000MAH
Luminous Efficiency
160LM/W
CRI (Ra>)
70
CCT
3000K/4000K/6500K
Installation height
5-7M
6-8M
7-10M
Installation distance
20M-30M
25M-35M
30M-45M
Working Temperature
-20 ℃-60℃
Material
Die-cast aluminum housing
IP Rating
IP65
Charging time
5-7H
Working time
24 - 30H
Working mode
Light control + switch button (regular model without radar)
160LM/W Solar Powered LED Street Light MPPT Controller LiFePO4 Battery
160LM/W Solar Powered LED Street Light MPPT Controller LiFePO4 Battery
160LM/W Solar Powered LED Street Light MPPT Controller LiFePO4 Battery
160LM/W Solar Powered LED Street Light MPPT Controller LiFePO4 Battery
